Welcome to our crash course in fashion flats! Come and take a deep-dive into the world of fashion with flat sketches, also known as tech sketches, line drawings and design development sketches (DDS). You'll be an expert by the time you're done reading this!
Aug 13, 2016 - Sewing pattern - Try our modern take on the harem pant in jersey with ribbed cuffs - Get it now!
It All Started in The Caves
Since the dawn of man, humans have sought out ways of communicating, sharing ideas, practices, customs and beliefs. The scribes, painters and stone cutters of ancient Egypt (3200 BC—30 BC) were among the first 'commercial' artists, working as paid or conscripted artisans for the Egyptian nation-state.
With the development of the modern fashion industry in the 19th century, designers started using technical sketches to communicate their design ideas so teams could work on them.
Download this Premium Vector about Short pants flat sketch template, and discover more than 11 Million Professional Graphic Resources on Freepik. Downloadable Fashion Templates: Pants Flat Fashion Sketches. Definition: Pants usually refer to a garment worn on the lower part of the body, which typically starts at the waist and covers each leg individually. Pants are also used as a collective term for all types of jeans, trousers, etc. Worn by men, women, and children.
What's a Flat Sketch?
A flat sketch is a two-dimensional technical drawing which illustrates a garment with basic solid lines. It's like a 'blueprint' of your fashion design —much like an architect's blueprint for a house before they can begin to construct it.
The word 'flat' refers to the way that they are drawn: imagine the garment is lying flat on a table so that you are viewing all the details from either the front or the back.
Aside from front/back views, some brands will include drawings of details or the side views to show how panels travel around the body or how sections of the garment should be constructed.
Why Flat Sketches are Important
As an essential part of the garment specification sheet or tech pack, they give your pattern-maker and your manufacturer's sewing teams all the information they need about the technical components of a piece. How else will they understand your vision
Difference Between Flats and Illustrations
A fashion illustration captures the mood, proportion and color of your design, it's more of an interpretation of your idea. Whereas the technical sketch helps translate the garment into something 'universal' which a whole team of people can understand and work on.
A fashion illustration is transformed into a technical sketch to create a 'blueprint' for the pattern and construction of the garment.
Creating Fashion Flats: The Essentials
1) Include multiple views of your garment
Sometimes just front/ back views are not enough for a factory to understand your design requirements. Ideally, you should include side views, inside and other details to show how the garment should be constructed.
2) Be as Detailed as Possible

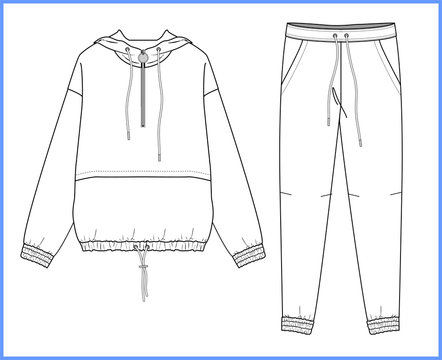

Sweatpants Flat Sketch
Develop templates that are detailed so you can use them later in other tech packs. Remember that with Techpacker you can save design details inside cards to be used again as needed.
3) Keep it Simple
Add details as explained above but don't overcomplicate things either. Avoid shading and use plain black and white sketches to clearly represent your design.
Read more about how to ace your flat sketches every time!
Liking what you read? Subscribe to our newsletters
Tech Developments to The Rescue!
Tech flats used to be hand-drawn using rulers and black felt tip pens and indicated the scaling of the original design sample measurements.
Today, most brands use Computer Aided Design (CAD) technologies that enable virtual true to life prototypes, instead of real samples. However, CAD technology isn't cheap and has a steep learning curve. Which is why most designers prefer Adobe Illustrator to create their flats.
The Technical Designer
There's actually someone who only specialises in technical flat drawings. In fact, their role should be to link the Design and Production teams. They are essentially the engineers of fashion.
Funnily though, no two Technical Design jobs are ever the same. To learn more about all the things tech designers can do check out this article. The learning opportunities in this field are endless!
Here's a video from this insightful post by the University of Arts, London that we highly recommend for you to get on the right track doing flats!
→ Free fashion flats in Adobe Illustrator format and tips on how to create flats
Designer Nexus (You need to sign up for free first!)
→ Check out this designer who looked into creating a Web-based Design Support System for Fashion Technical Sketches. Her idea was to enable users to design realistic garments in the form of technical sketches over the internet.
Pants Flat Sketch Women
Once you have your flat sketches ready, it's time to add them to your tech packs and send over to your manufacturers so they can get started to turn your idea into a product.
In 3 simple steps, Techpacker allows you to add all your flat sketches as cards, make comments and send PDF-ready tech packs to your manufacturers in the blink of an eye!
Pants Flat Sketch
